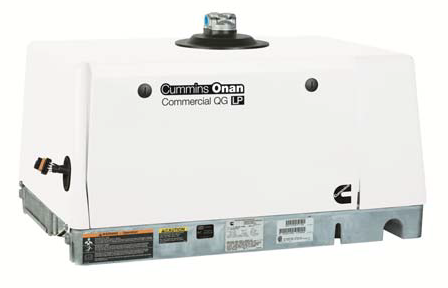

Commercial generator set Quiet GasolineTM Series QG 7000
Features and benefits
•Integrated hydraulic pump option (pictured)
•Quietest and lowest vibration generator set in its class
•Integrated housing design
•Enclosed muffler for ease of installation
•Self-diagnostic capability to simplify troubleshooting
•Runs two ACs with power to spare
•Digital regulation for voltage stability as loads change
•2-year limited warranty, 5-year drive warranty
Weight, size and sound level
Weight: 299 lbs (136 kg)
Size:Length 33.6 in (853 mm), width 22.2 in
(563 mm), height 16.7 in (425 mm)
Sound: 70 dB(A) at 10 ft (3 m), typical installation, full load
-All 60 Hz models operate at 2880 r/min.
-Ratings apply up to 3000 ft (914 m) altitude, 85° F (29.4° C).
-Derating: Power output will decrease 3.5% for each 1000 ft (305 m) above 3000 ft (914 m), temperature derate not required for ambient** temperatures under 120° F (49.2° C). Temperature: Power output decreases 1% for every 10 °F (5.5 °C) increase.
-Ratings are at intermittent power output.
#  Splined shaft.
* Ambient is defined as the air temperature measured at the cooling air inlet to the set.
**Factory OEM packaging
•Evaporative spec: For trailer applications required to meet Tier III Evaporative emissions of the California Air Resources board.
Effective January 1, 2011, gasoline generator sets on trailers, diesel chassis or any other non-motorized mobile apparatus must have an EVAP generator set, approved tank, EVAP canister, hoses and fittings all meeting the CARB Tier 3 and EPA phase 3 standards and specifications. This law applies in all 50 states.
Generator weight does not include battery charger or splined shaft.
Standard features
•Mechanical governor adjustable from service side
•Cummins Onan OHV engine
•Pressurized thru flow cooling system
•4-point mounting system with coil spring vibration isolators
•Universal mounting tray with structural capability to support the generator set in commercial mobile applications
•Integral USDA Forest Service-approved spark-arrestor muffler
•Integral control box
•Instant one-touch stop switch
•Electronic ignition
•Self diagnostic capability
•Hour meter
•Battery charging - 5 A
•Remote disable/continuous stop
•Start and run without AC output - engine run only
•Enclosed muffler provides noise reduction and ease of installation
•Sound-attenuated housing
•Waterproof remote connector
•Heavy-duty solenoid shift starter
•Fuel filter
•Spin-on, full-flow oil  filter
•Low oil pressure protection
•Over/under speed protection
•Low power factor field overcurrent  protection
•Digital voltage regulation
•Hydraulic pump standard on some models
•10 ft generator set output lead
Engine details
Model: Cummins Onan OHV EH65V gasoline engine Design:   4-cycle,  OHV,  90-degree  V-twin Cylinders:  2
Bore:  80 mm
Stroke:  65 mm
Displacement:   39.8 in3 (653 cm3)
Compression ratio:  8:1
Oil capacity:  2.0 qt (1.9 L) including  filter
Power (max):   At 2880 r/min: - Gasoline-fueled  models:
14.0 hp - LP-fueled models: 11.6 hp
Cooling: Centrifugal blower, generator set mounted for high effectiveness, pressurized system, vertical flow Cooling air volume:  60 Hz: 500 ft3/min (14.2 m3/min)   at 2880 r/min. Air flow includes engine, generator set and control cooling air flow
Fuel system:
Replaceable dry element air cleaner
•Gasoline - sidedraft carburetor
Electronic fuel pump with positive fuel shutoff (3 psi), maximum fuel lift 3 ft (0.9 m), Automatic choke with vacuum pull-off
Combustion air volume: 60 Hz: 18.9 ft3/min (0.53 m3/min) at 2880 r/min
•LPG - sidedraft mixer with demand regulator Combustion air volume: 60 Hz: 18.3 ft3/min (0.51 m3/min) at 2880 r/min
Starting system: Remote, 12 V, negative ground; automotive type starter with steel pinion and ring gear, automatic start disconnect, connector for remote start cable, start-stop rocker switch mounted on set control Ignition system: Electronic magneto type with resistor plugs Lubrication:   Full pressure positive displacement lube  oil pump, spin-on, full-flow lube oil filter, low oil pressure shutdown, dipstick
Cylinder crankcase: Alloy aluminum with iron cylinder liners cast into the block, aluminum oil base

Cylinder  head:   Aluminum, OHV, removable
Alternator details
Design: Cummins Onan, revolving field, AC, 2-pole self- excited, two bearing design
Insulation system and temperature rise: Meets requirements of NEMA MG-1 and CSA C22.2, Std. 100 Motors and Generators
Cooling: Direct drive centrifugal blower, cast aluminum housing for excellent heat transfer
Rotor:  Laminated electrical steel assembly press-fitted  to shaft, balanced; heavy insulated copper wire windings; optimized air gap for improved waveform and motor starting; Class 200 magnet wire
Stator:  Laminated electrical steel assembly, skewed  for

improved waveform; Class 200 quadrature wire with 70% more insulation over comparable generator sets Excitation:   Capped, digital voltage  regulation
DC brushes: Electrographic; long life
Bearing:   Double-sealed pre-lubricated ball bearings
Generator set performance
Hydraulic pump
•Fixed displacement gear pump, 1.8 Gal/min at 2500 psi
•Hydraulic pump is rated with the pump  idle
•When using a non-Cummins Onan pump supplied by the customer, the hydraulic pump shaft seals must be capable of operating in a temperature environment of 225° F to 250° F. Seal failure will result in equipment damage

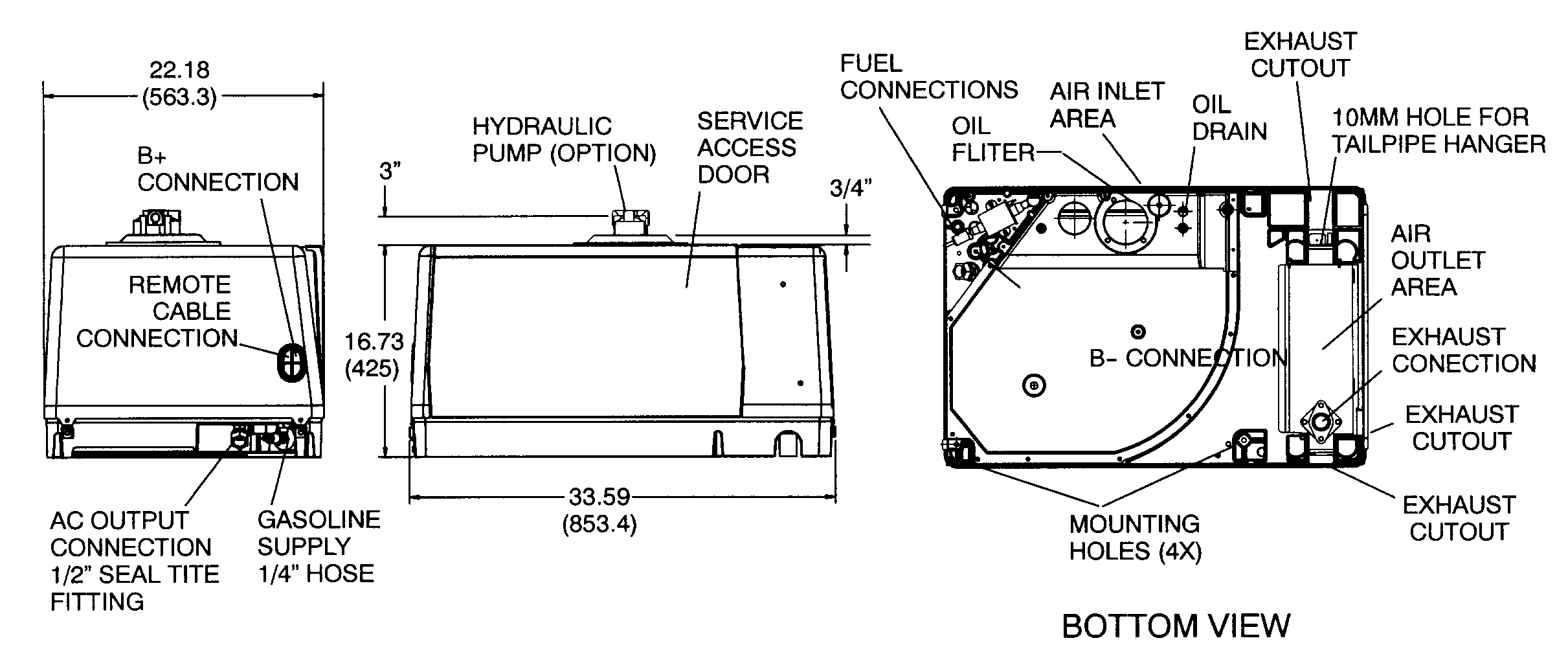

Basic dimensions
Options  and accessories
•Remote control start/stop rocker switch (P/N 300-5331)
•Remote control with start/stop switch and hour meter (P/N 300-5332)
•Remote control with start/stop switch and DC voltmeter (P/N 300-5333)
•Remote control plug and wire harness 10 ft (P/N 338-3489-01), 30 ft (P/N 338-3489-02)
•Remote harness (P/N 300-4946) pigtail harness to connect to sealed remote connector
•LPG vapor fuel conversion kit (P/N 148-1161)
•Under floor mounting kit (P/N 405-6699)
•Installation template (P/N 539-2057)
•  Tailpipe kit 22 in (P/N 155-3481-01), 26 in
(P/N 155-3481-02)
•Exhaust tube, straight with flanged end 3 in (P/N 155-2610), 7 in (P/N 155-2424), 12.5 in (P/N 155-2610-01)
•Exhaust elbow, tight radius 90° to route exhaust through cutouts (P/N 155-3439)
Standards and testing
•Tested at extremes of temperature -20 °F to 120 °F for starting and operation
•Tested installed
•Tested with commercial loads
•Tested in high humidity conditions
•Tested in salt spray conditions
•Tested in heavy airborne dust conditions
•Field test program
•60 Hz models meet applicable U.S. EPA and California emissions standards.
•This generator set was designed and manufactured in facilities certified to ISO 9001
•CSA certified for CSA C22.2 Std 100 and Std 14
After sale support
Largest  distributor/dealer  support  network Cummins Onan generator sets are supported by the largest and best trained worldwide certified distributor/dealer network in the industry. This network  of knowledgeable Cummins Onan distributor/dealers will help you select and install the right generator set and accessories to meet the requirements of your specific application. This same network offers a complete selection of commonly used generator set maintenance parts, accessories and products plus manuals and specification sheets. Plus, they can answer your questions regarding proper operation, maintenance schedules and more.

Manuals: Operation and installation manuals ship with the generator set. To obtain additional copies or other manuals for this model, see your Cummins Onan distributor/dealer and request the following manual numbers: Operation (A035D007), Installation (A035D003), Parts (983-0202 I10), Service (A035D011).
Frequency regulation             No load/Full load       5.0%     Frequency regulation         Constant load          1.7%
Voltage regulation                 No load/Full load       2.0%     Voltage regulation             Constant load          1.7%
